Description

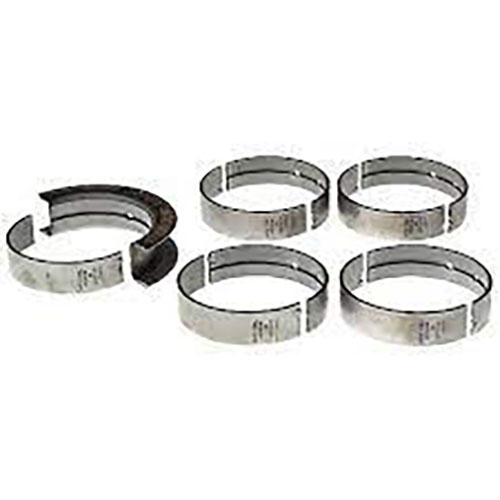

The Clevite MS-2223P P-Series Main Bearing Set provides you with top quality bearings for your 2003-2007 Ford 6.0 Powerstroke. The Clevite P-Series are the oldest series of Clevite high performance bearings. Most P-Series main sets are full grooved to maximize oil flow to the bearings. The P-Series has a high crush for maximum retention and a reduced overlay thickness to prevent overlay fatigue, sometimes referred to as hen tracking.
Use the P series mains where high eccentricity is desired to narrow bearing contact patterns and to provide increased oiling to rod bearings. Rod bearing oil starvation is typically indicated by polishing and smearing of the bearing surface, possibly accompanied by discoloration predominantly concentrated at the axial center of the bearings.
FEATURES :
Size : Standard
Clevite {-Series
Material : TM-77
Specifications :
Housing Bore (Min – Max) : 3.385 in – 3.386 in
Max Length : 0.846 in
Vert. Oil Clearance (Min – Max) : 0.002 in – 0.004 in
Shaft Diameter (Min – Max) : 80.99 mm – 81.011 mm
Wall Thickness (Max) : in – 0.098 in
Ford Cross Reference # : 3C3Z 6D309 AA
6.0L POWERSTROKE ENGINES
Fits 2003, 2004, 2005, 2006, 2007 Ford 6.0L Power Stroke Equipped Vehicles
This item comes with a manufacturer’s warranty.
